Indicator Switch Panel

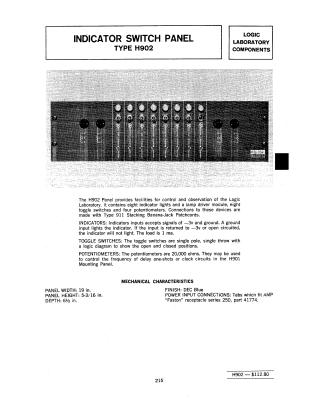

The H902 Indicator Switch Panel is designed for the Logic Laboratory, featuring eight indicator lights, a lamp driver module, eight toggle switches, and four potentiometers. It connects using Type 911 Stacking Banana-Jack Patchcords. Key features include:

• Indicators: Accept signals of -3V and ground; a ground input illuminates the indicator (1 mA load).
• Toggle Switches: Single pole, single throw with a logic diagram indicating open/closed positions.
• Potentiometers: 20,000 ohms for controlling frequency in H901 clock or delay circuits.

The panel is 19 inches wide and finished in DEC Blue.
