Analog-Digital Panel

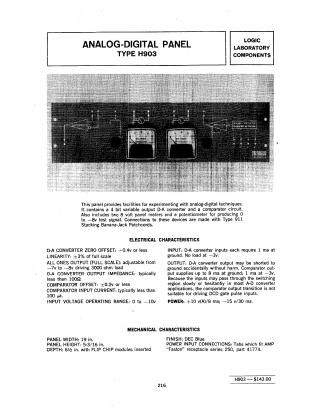

The Type H903 Analog-Digital Panel is a laboratory component designed for experimenting with analog-to-digital techniques. It features a 4-bit variable output D-A converter, a comparator circuit, two 8-volt panel meters, and a potentiometer capable of producing a 0 to -8V test signal. The document provides detailed electrical characteristics, including D-A converter and comparator offsets, linearity, output impedance, power requirements, and input/output voltage ranges. It also lists mechanical characteristics, such as the panel's dimensions and finish (DEC Blue).
