Flip Flops

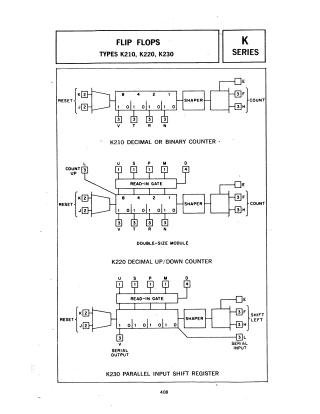

This document provides technical data and an overview for three K-Series flip-flop modules: the K210 decimal or binary counter, the K220 decimal up/down counter, and the K230 parallel input shift register. These modules are designed to enhance logic and control systems by providing counting, shifting, and status sensing capabilities. The document includes block diagrams for each module type, a comparison table detailing fanout, connection types, and maximum count/shift rates, and information on cascading, compatibility with BCD code, and signal conditioning for non-sinusoidal waveforms.
