Parity Circuit

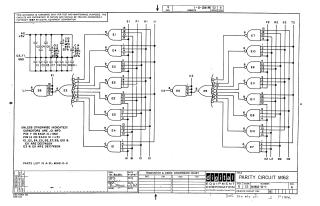

This document describes the M162 module, which contains two parity circuits to detect the parity (odd or even) of binary data. The document outlines the signal requirements for data input and its complement, explains how odd or even parity is indicated via high levels on specific output pins (K1, U2 for odd; L1, V2 for even/no input), and provides key technical specifications regarding unit loads for inputs and outputs, as well as maximum power dissipation of +5V at 102 mA. A simplified diagram of the M162 module is provided.
