R-S Flip-Flops

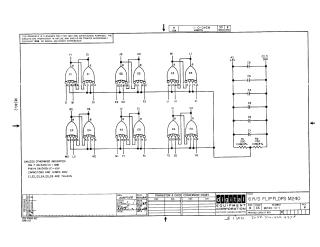

The M240 module consists of six R-S-type flip-flops, each utilizing two cross-coupled NAND gates. This document details the operation of these flip-flops, including a comprehensive truth table, propagation delay characteristics (10 ns for HIGH, 20 ns for LOW), and electrical specifications such as TTL unit loads, output drive capability, and power dissipation (5V at 185 mA).
