Integrating One Shot

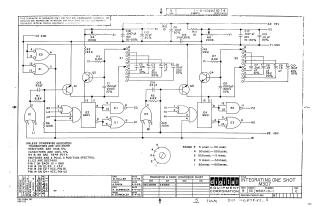

This document contains the detailed schematic for the M307 Integrating One Shot module, manufactured by Digital Equipment Corporation in 1970. It includes component specifications, such as transistor and diode types (DEC3009B/2N3009), capacitor and resistor values, and pin-out configurations for the integrated circuits (E1-E4). Additionally, it provides a table detailing the timing ranges associated with the one-shot functionality, ranging from 5 microseconds to 500 milliseconds.
