Pulse Generators

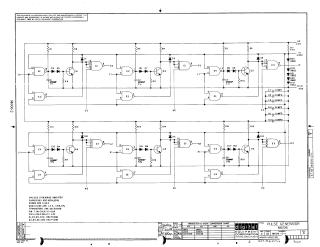

This document outlines the operational characteristics of the M606 pulse generator module. It contains six separate pulse generators, each designed to produce a pulse to ground when the input level shifts from HIGH to LOW. Key technical specifications include:

• Pulse Timing: Pulses must be between 30 ns and 100 ns.
• Inhibit Gate: Each generator includes an inhibit gate to block output when grounded; applying a logic 1 level allows for continuous output.
• Interface Capability: The outputs are suitable for setting or clearing up to 15 flip-flops.
• Specifications: Detailed input (trigger and inhibit TTL loads), output (30 unit loads), and power dissipation (5V at 188 mA max) requirements are provided.
