Reader Control

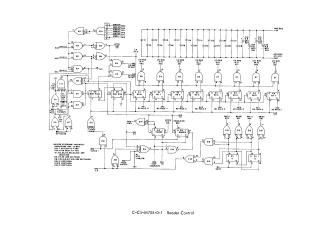

This document provides a detailed circuit diagram for the Reader Control logic. It identifies various integrated circuits (ICs) used, such as DEC7400N, DEC7401N, DEC7430N, and others. The schematic covers signal routing, input/output bus connections, and control logic for operations like 'RD' (Read) cycles, 'SHIFT' functions, and 'POWER/ENABLE' states. It also includes specific notes on capacitor specifications (.01 MFD) and pin configurations (pin 7 for Ground, pin 14 for +5V) for the indicated ICs.
