Time State Generator

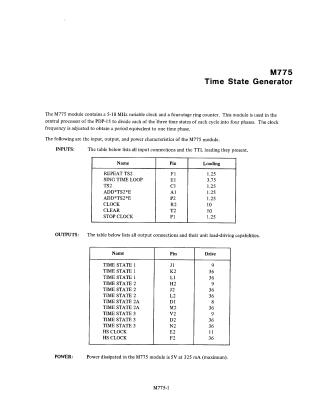

The M775 module is a component of the PDP-15 central processor, designed to function as a time state generator. It includes a 5-18 MHz variable clock and a four-stage ring counter used to divide time states into four distinct phases. This document provides tables outlining the specific input connections and TTL loading, output connections with their load-driving capabilities, and power dissipation specifications (5V at 325 mA maximum).
