NOR / NAND Gate

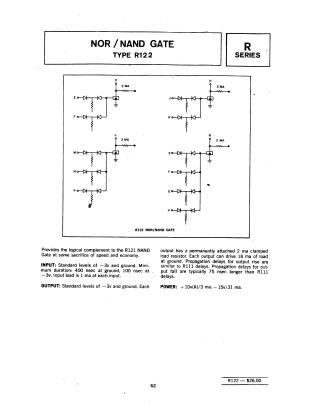

This document provides the technical specifications for the Type R122 NOR/NAND gate, a module within the R series. It acts as the logical complement to the R121 NAND gate, noting a minor trade-off in speed and economy. It outlines input and output requirements, including standard voltage levels of -3v and ground, input load constraints, and output driving capabilities. Power requirements are also provided: +10v(A)/3 ma and -15v/31 ma.
