Exclusive Or Module

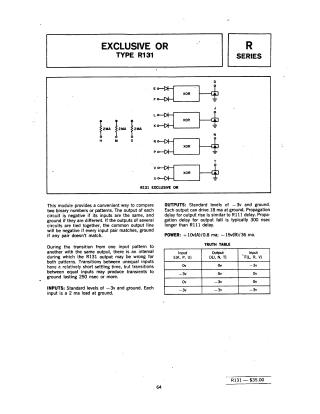

This document provides technical specifications and operational details for the R131 Exclusive OR module. The R131 is designed to compare two binary numbers or patterns, outputting a negative signal if inputs are the same and ground if they are different. The module features standard input/output levels of -3v and ground, with specific power requirements, propagation delays, and load-driving capabilities. A truth table is included to illustrate input-output logic, and the text highlights potential transient behaviors during signal transitions.
