Triple Flip-Flop

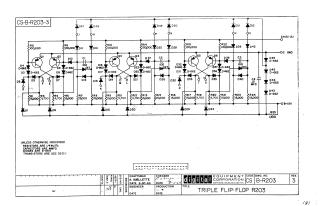

This document provides technical specifications and operational guidelines for the R203 Triple Flip-Flop, a module containing three identical flip-flops, each featuring a direct clear input and a DCD gate for conditional read-in. The summary details:

• Inputs: Requirements for the direct clear input and DCD gates, including pulse duration, voltage levels, load characteristics, and timing constraints.
• Triggering: Information on collector triggering and external load requirements.
• Outputs: Standard voltage levels, drive capabilities, and the need for clamped loads for longer wire runs.
• Power: Power consumption requirements for the module.
