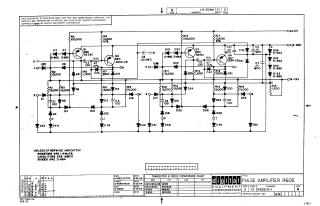

Pulse Amplifiers

This document provides technical specifications and operational information for the R602 and R603 pulse amplifiers. These modules are designed for power amplification and signal standardization (amplitude and width).

Key features include: * Performance: Standard 100-nsec pulses, with the R602 also capable of 400-nsec pulse production. * Connectivity: Supports multiple input sources via DCD gates and single diode inputs. Outputs can be paralleled to form a logical OR. * Specifications: Covers input requirements (level and pulse), output drive capabilities (up to 70 ma), delay times (approx. 50 nsec), and detailed power supply requirements for both types. * Pricing: R602 is listed at $22.00, and R603 is listed at $28.00.
