Clamped Loads

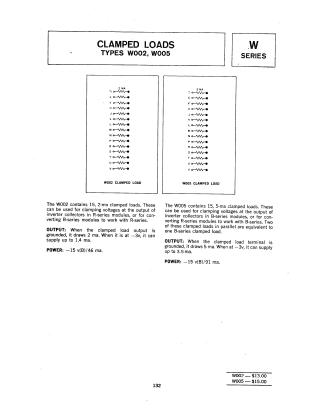

This document provides product information for the W-series clamped loads, specifically models W002 and W005. The W002 module contains 15 units of 2-ma clamped loads, while the W005 module contains 15 units of 5-ma clamped loads. These components are designed for clamping voltages at the output of inverter collectors in R-series or B-series modules, or for bridging compatibility between these module types. The summary includes output current capabilities (both grounded and at -3V) and power requirements for each type.
