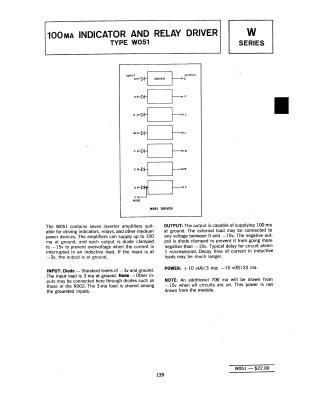

Indicator and Relay Driver

The W051 is a W-series module containing seven inverter amplifiers designed for driving indicators, relays, and other medium-power devices. It can supply up to 100 ma at ground. The document outlines:

• Input: Compatible with standard -3v and ground levels with a 3 ma input load at ground.
• Output: Provides 100 ma at ground with diode clamping to -15v to handle inductive loads.
• Power Requirements: Operates on +10v and -15v, noting that an additional 700 ma is drawn from -15v for output loads.
• Performance: Typical circuit delay is 1 microsecond.
