Teletype

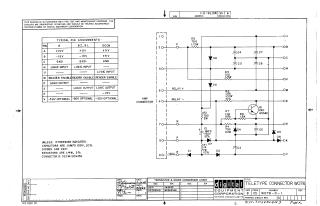

This document provides the schematic diagram for the Digital Equipment Corporation Teletype Connector W078. It is intended strictly for test and maintenance purposes. The schematic includes details on typical pin assignments for various models (8, 8I, 8L, and DC08), component values (capacitors, diodes, and resistors), and the connector part number (DEC 1209456). The document also contains a transistor and diode conversion chart.
