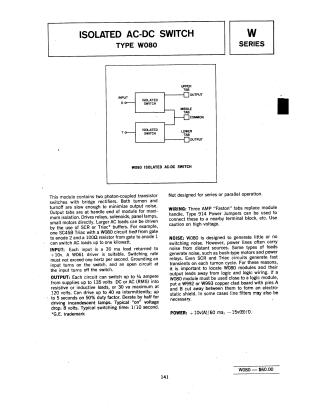

Isolated AC-DC Switch

This document describes the Type W080 Isolated AC-DC switch, a W-series module containing two photon-coupled transistor switches with bridge rectifiers. It is designed to minimize output noise and is suitable for driving relays, solenoids, panel lamps, and small motors directly, or larger AC loads via SCR/Triac buffers. The document provides specifications for input/output electrical characteristics, wiring guidance using AMP Faston tabs, noise suppression techniques, and power requirements.
