Pulsed Bus Transceiver

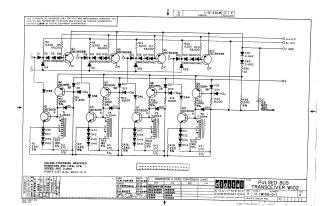

This document contains a technical circuit schematic for the Digital Equipment Corporation Pulsed Bus Transceiver (W102). It is intended for test and maintenance purposes and includes a transistor and diode conversion chart. The schematic details the wiring, components (including transistors DEC3639B, DEC3009B, and diodes D662, D664), and values for resistors and capacitors used in the module.
