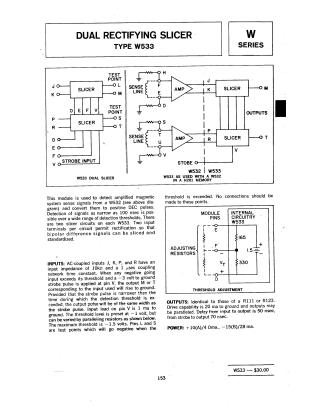

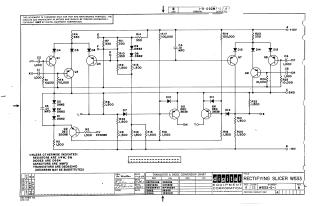

Dual Rectifying Slicer

The W533 is a dual rectifying slicer module designed to detect amplified magnetic system sense signals from a W532 module and convert them into positive DEC pulses. Each module contains two independent slicer circuits, allowing for the rectification and standardization of bipolar difference signals. Key features include:

• Capability: Detection of signals as narrow as 100 nsec over a wide range of thresholds.
• Inputs: AC-coupled with an input impedance of 10k ohms and a 1 usec coupling network time constant. Operates with a -3 volt to ground strobe pulse.
• Outputs: Standardized to ground, compatible with R111 or R123 modules, with a drive capability of 20 mA to ground.
• Thresholds: Preset at -1 volt, adjustable up to -1.5 volts via paralleling resistors.
• Performance: Input to output delay of 50 nsec; strobe to output delay of 70 nsec.
• Power Requirements: +10V at 4 mA and -15V at 28 mA.
