Negative Output Converter

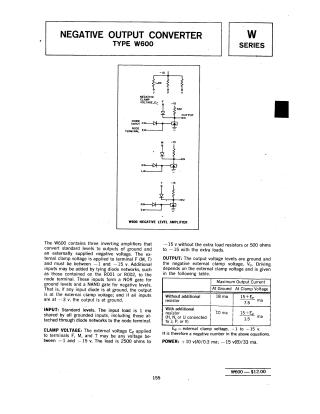

The W600 Negative Output Converter contains three inverting amplifiers used to convert standard levels to either ground or an externally supplied negative voltage. The clamp voltage is user-defined between -1 and -15 V, applied to the F, M, or T terminals. The device supports the addition of diode networks to create NOR gates for ground signals and NAND gates for negative levels. The document includes technical specifications for input load, clamp voltage requirements, output current limits based on the clamp voltage, and power supply requirements (+10V and -15V).
