Switch Filter

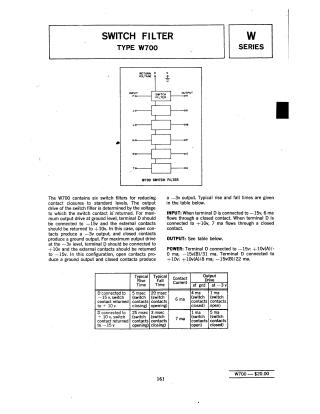

This document provides technical details for the W700 Series switch filter, which is designed to reduce contact closures to standard signal levels. It details:

• Operational Configurations: How to connect terminal D and return external contacts to achieve either ground or -3v output drive.
• Electrical Performance: Typical rise and fall times for different connection setups.
• Technical Specifications: Input currents, output drive levels, and power consumption for various operating modes.

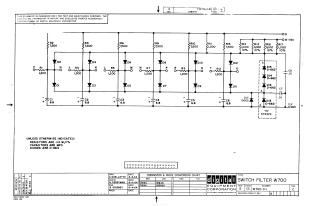

• Functional Diagram: A block diagram showing the arrangement of the six switch filters.
