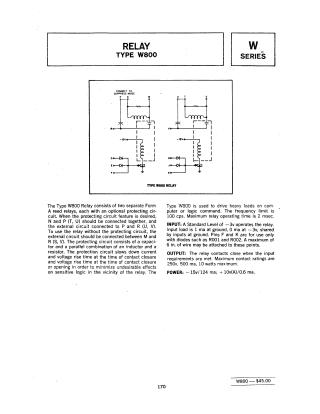

W800

This document provides the technical specifications, wiring configurations, and operational details for the Type W800 Relay, part of the W Series. It includes:

• Configuration: Describes the internal structure consisting of two Form A reed relays with optional protection circuits.
• Wiring: Instructions on how to connect the relay with or without the protective capacitor-inductor-resistor circuit.
• Input Requirements: Standard operating level of -3V and input loading characteristics.
• Output Ratings: Maximum contact ratings of 250V, 500mA, and 10 Watts.
• Performance: Operational data including a 100 cps frequency limit and a maximum operating time of 2 msec.
