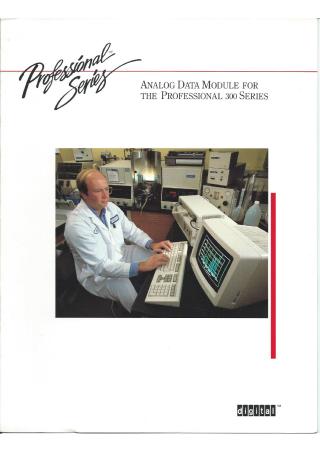

Analog Data Module for the Professional 300 Series

This document provides a comprehensive overview of the Analog Data Module (ADM) designed for the Professional 300 Series (Professional 350 and 380). It details the product's benefits, such as high-accuracy data acquisition, self-calibration, and ease of installation. The document covers:

• Product Description: How the ADM interfaces with the Real Time Interface (RTI) to monitor and control experiments.
• Hardware Specifications: Details on the eight differential analog input channels, programmable gain amplifier, 16-bit analog-to-digital converter, and digital I/O capabilities.
• Features: Information on the on-board real-time clock, buffer memory, and connection requirements.
• Software Support: Use of the Professional Real Time Interface Library (PRTIL) for acquiring, analyzing, and plotting data.
• Ordering & Support: Part numbers, system requirements, and environmental specifications.
