Indicator Panel

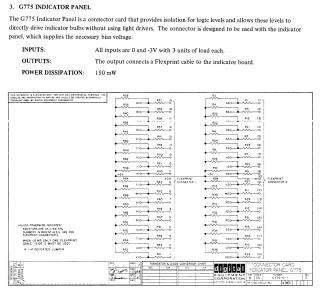

This document provides technical details for the G775 Indicator Panel, a connector card that isolates logic levels and enables them to drive indicator bulbs directly without external light drivers. The module consumes 150 mW of power and is designed to interface with an indicator panel that provides bias voltage. The document includes a schematic diagram of the circuitry, listing standard resistor specifications (3K, 1/4W, 5%) and outlining connectivity requirements for Flexprint cables.
