Device Selector

This document contains the official schematic for the M103 Device Selector, produced by Digital Equipment Corporation in 1968.

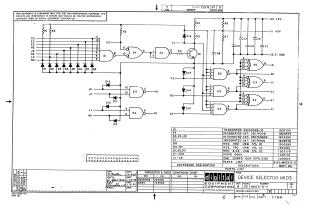

Key features of the document include: * Circuit Diagram: A detailed wiring schematic showing logic gates (E1-E5), diodes (D1-D16), transistors (Q1), and various resistors and capacitors. * Parts List: A comprehensive table listing all components used, including their reference designations, descriptions, and Digital Equipment Corporation part numbers. * Technical Data: Includes a Transistor & Diode Conversion chart for the included components, such as DEC3009B and D664.

This documentation is intended strictly for test and maintenance purposes.
