Gate Module M160

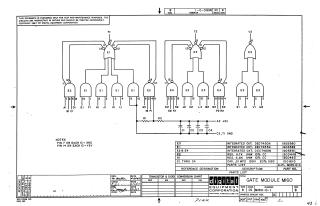

This document is a technical schematic of the Gate Module M160, manufactured by Digital Equipment Corporation in 1967. It provides the wiring and circuit logic for the module, detailing the configuration of integrated circuits (DEC7450N, DEC7453N, and DEC7460N), resistors, and capacitors. The schematic includes a parts list, reference designators, and a note indicating that pin 7 on each integrated circuit is connected to ground, while pin 14 is connected to +5V.
