Write Buffer

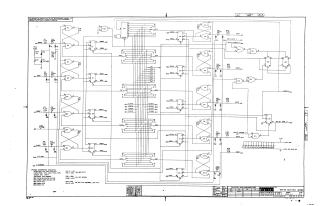

This document contains the detailed electronic schematic for the M763 Write Buffer module (revision E). It includes logic gate configurations, signal pinouts, resistor and capacitor values, and a transistor/diode conversion chart. The schematic is intended for test and maintenance purposes and is proprietary to Digital Equipment Corporation.
