Diode Gate

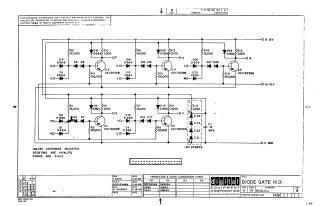

This document contains the official engineering schematic for the R113 diode gate circuit, manufactured by Digital Equipment Corporation. It provides a detailed wiring diagram including transistors (DEC3639B), diodes (D664), and resistors, along with a conversion chart linking the components to industry-standard parts like 2N3639 and 1N645. The schematic is intended strictly for technical test and maintenance applications.
