Dual Flip Flop

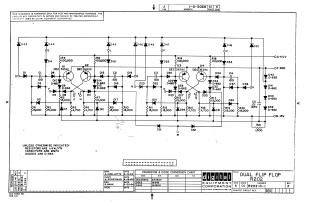

This document provides the technical schematic for the R202 Dual Flip Flop module, designed by the Digital Equipment Corporation in 1964. The schematic includes a transistor and diode conversion chart and is intended for test and maintenance purposes. It details the arrangement of transistors (DEC 3639C), diodes (D-662 and D-664), resistors, and capacitors within the dual flip-flop circuit, along with pin connections for the module.
