Diode Gate

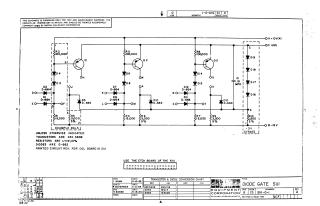

This document provides the electrical schematic for the S111 Diode Gate, a component manufactured by Digital Equipment Corporation. It includes details on the circuit configuration, transistor and diode specifications, and references to the etch board used for the R111.
